| 圖 片 | 編 號 | 位 置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 |

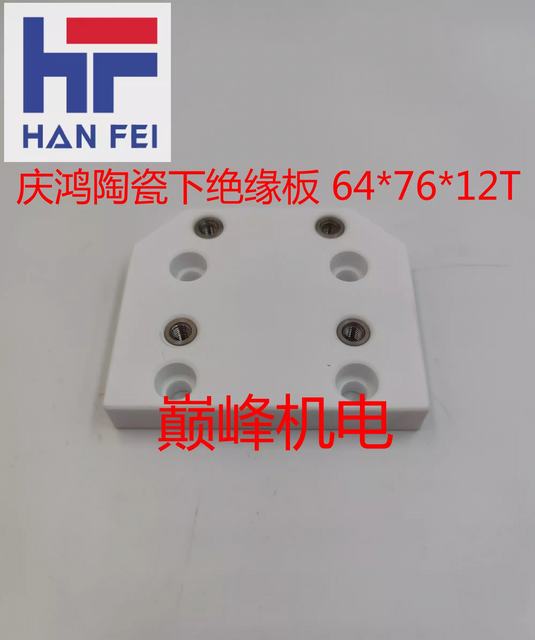

CH302-12 | Lower | 下絕緣板 Isolator Plate 64x76x12t |
MW53W55D | |
 |

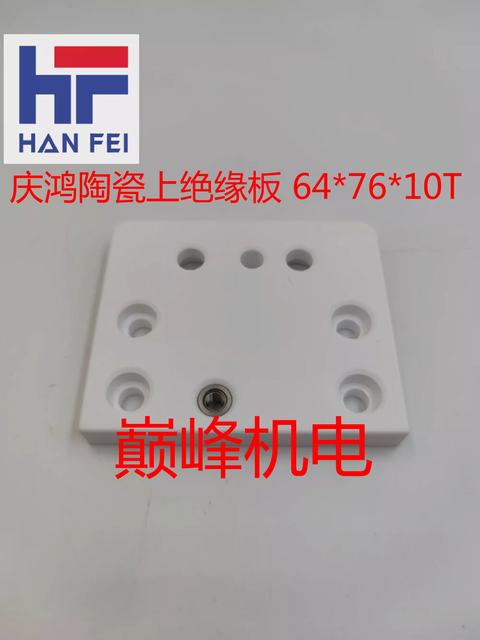

CH302-10 | Lower | 上部絕緣板 Isolator Plate 64x76x10t |
MW53E55D | |
 |
CH301 | Upper | 上部絕緣板 Isolator Plate 64x76x10t |
MW64A44K | |
 |
CH300 | Upper | 上部絕緣板 Isolator Plate 95*60*25tmm |
||
 |

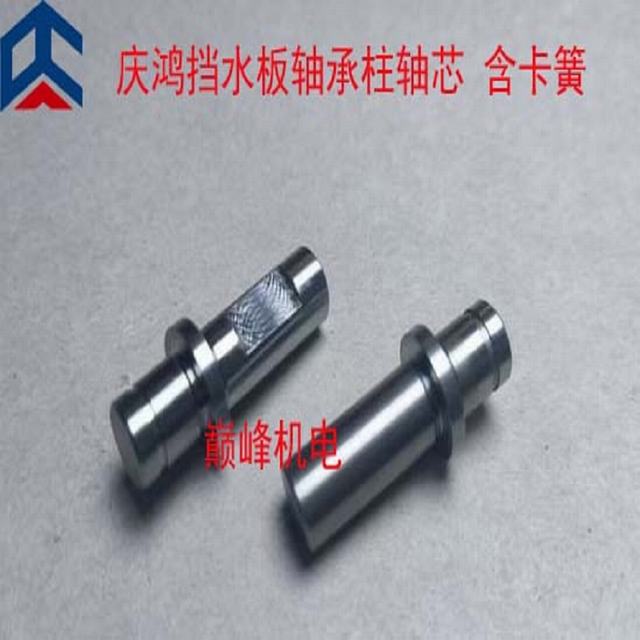

MCH845-ZX | 慶鴻擋水板軸承柱軸芯 | 慶鴻 | ||
 |
CH514 | Upper | 上機頭給水蓋板 Nozzle Holder (SUS) |
MW53W68F | |
 |
CH510 | Upper | 自動穿線上給電板座 Holder Of Power Feed Contact |
AWT | MAWT092F |
 |
CH509 | Upper | 上噴水頭蓋板 Nozzle Holder |
AWT | MW53W08D |
 |
CH508 | Upper | 自動穿線上眼模板 Die Guide Holder |
AWT | MW64A23F |
 |
CH507 | Upper | 自動穿線上機頭 Die Guide Holder |
AWT | MAWT086L |
 |
CH506 | Upper | 上機頭定位座 Die Guide Holder Locating Holder Of Head |
||
 |
CH505 | Upper | 上機頭給水蓋板 Nozzle Holder |
||
 |
CH504 | Upper | 上機頭遮水罩固定環 Water Cover Holder 50.7*43.3*4 |
||
 |
CH503 | Upper | 上機頭水蓋蓋板 Nozzle Holder 45*50*15.5(SUS) |
||
 |
CH502 | Upper | 上機頭 Dai Guide Holder |
||
 |
CH501 | Upper | 上機頭總承 Principal Head |
||
 |
MCH502G | 慶鴻不銹鋼上眼模座45*45*52t | |||
 |
AMS801 | 鉅鵬上眼模固定座 | 鉅鵬 | ||
 |
CH810 | 收線導環 （SUS) Take-Guide Ring |
MW53A27B | ||
 |
CH807 | 下機頭引線輪螺帽 M10*0.75P For CH407 |
M7B6MR10 | ||
 |
CH801 | 滾輪座蓋 Roller Block Cover |
|||
 |
CH517 | Lower | 軸承蓋 Bearing Cover |
||
 |
CH516 | Lower | 下機頭收線座固定板 Fixing Plate |
MW64A10J | |
 |

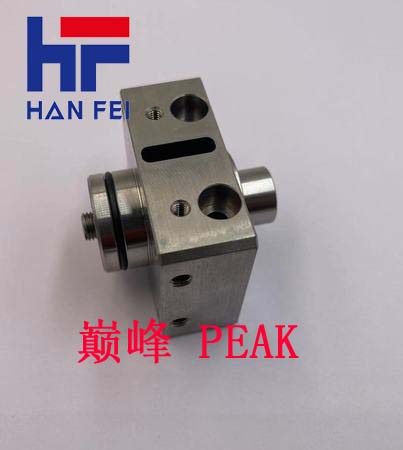

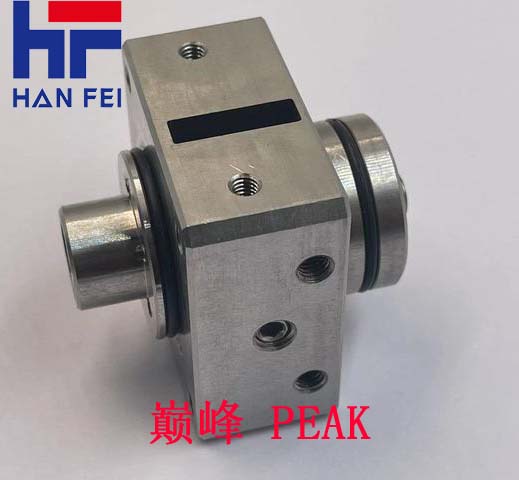

CH515 | Lower | 下機頭收線座 Roller Housing (SUS) 73*61*27t |
MAWT374G | |
 |
CH513 | Lower | 下噴水頭蓋板 Nozzle Holder |
MW53W27E |
